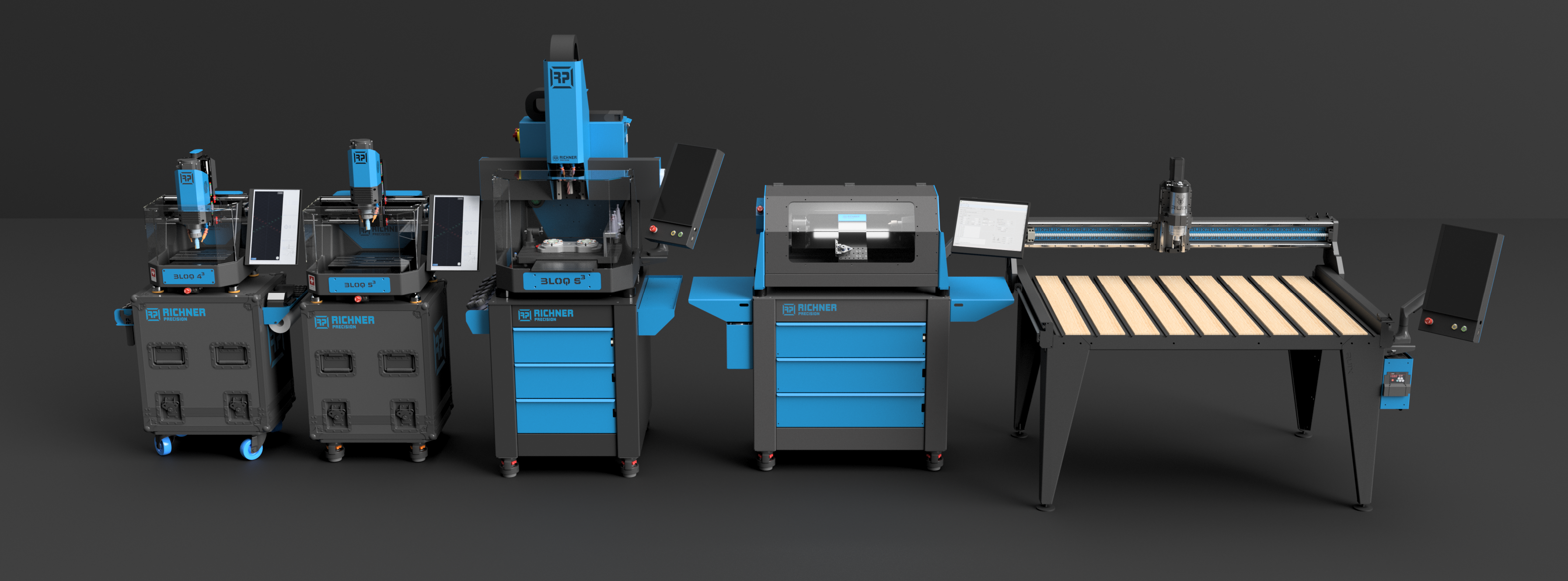

Our Richner-Precision CNC-Machines
All machines are available to order - price lists and technical documentation available upon request - Info@richner-precision.ch

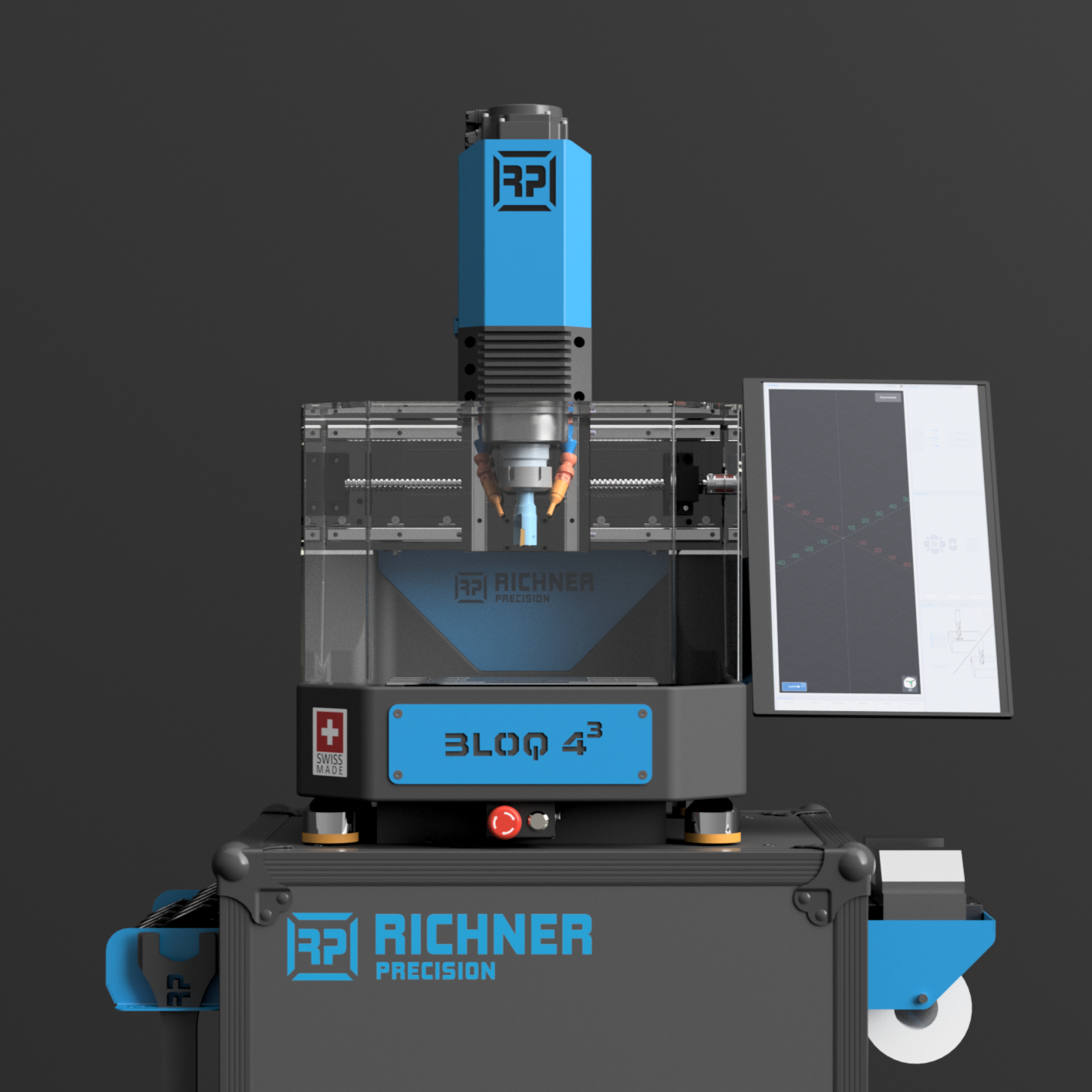

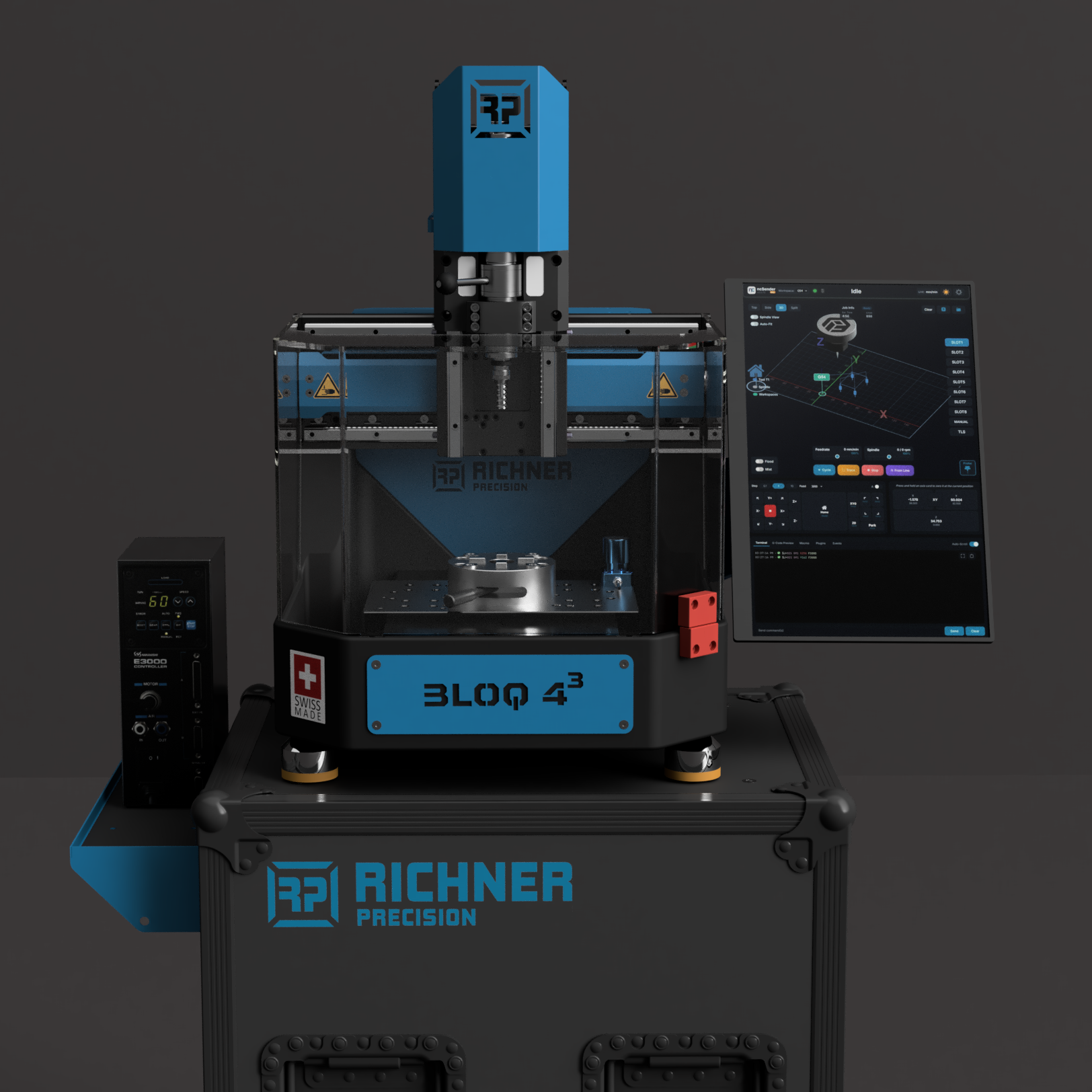

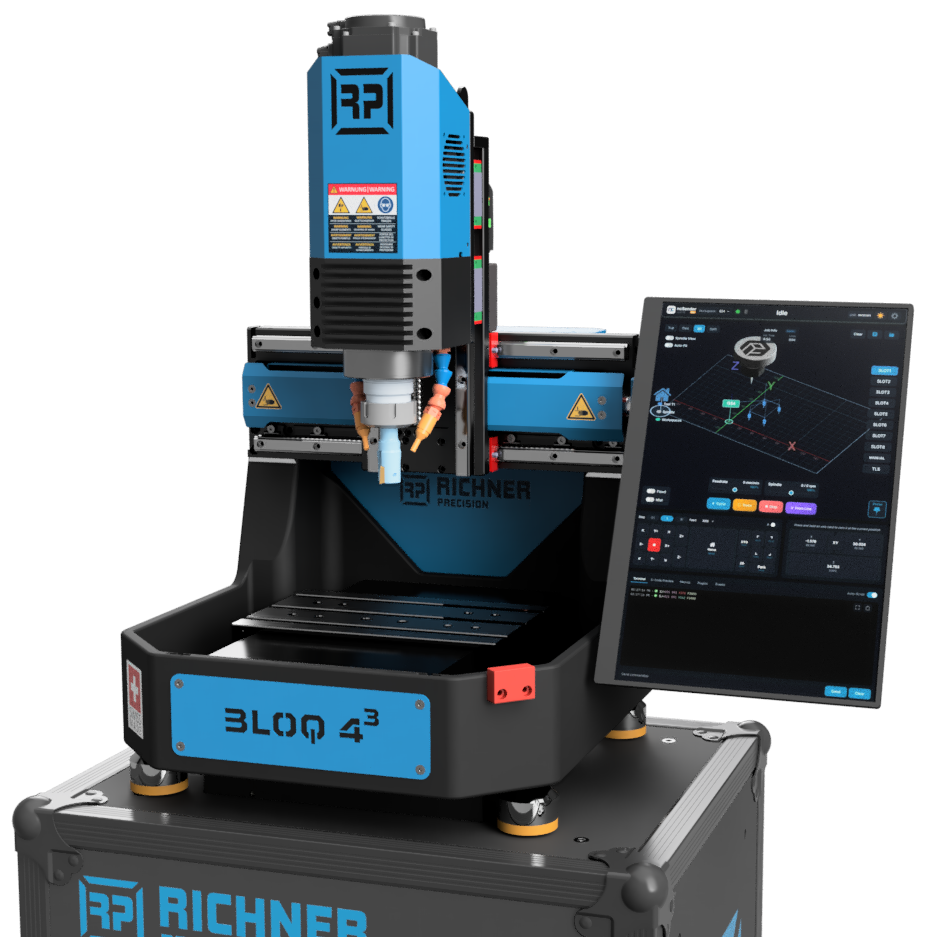

BLOQ 4³ CNC-Mill
Base-Machine starts at CHF 7000.-, EUR 7585€ excl. VAT.
- Travels: (X*Y*Z) 250x162x150mm
- Spindle Power: 2hp (1.5kW)
- Max. Feed Rate: 8m/min
- Table Size: 250x180mm
- System Weight: ≈130Kg with Case
Availability: in stock

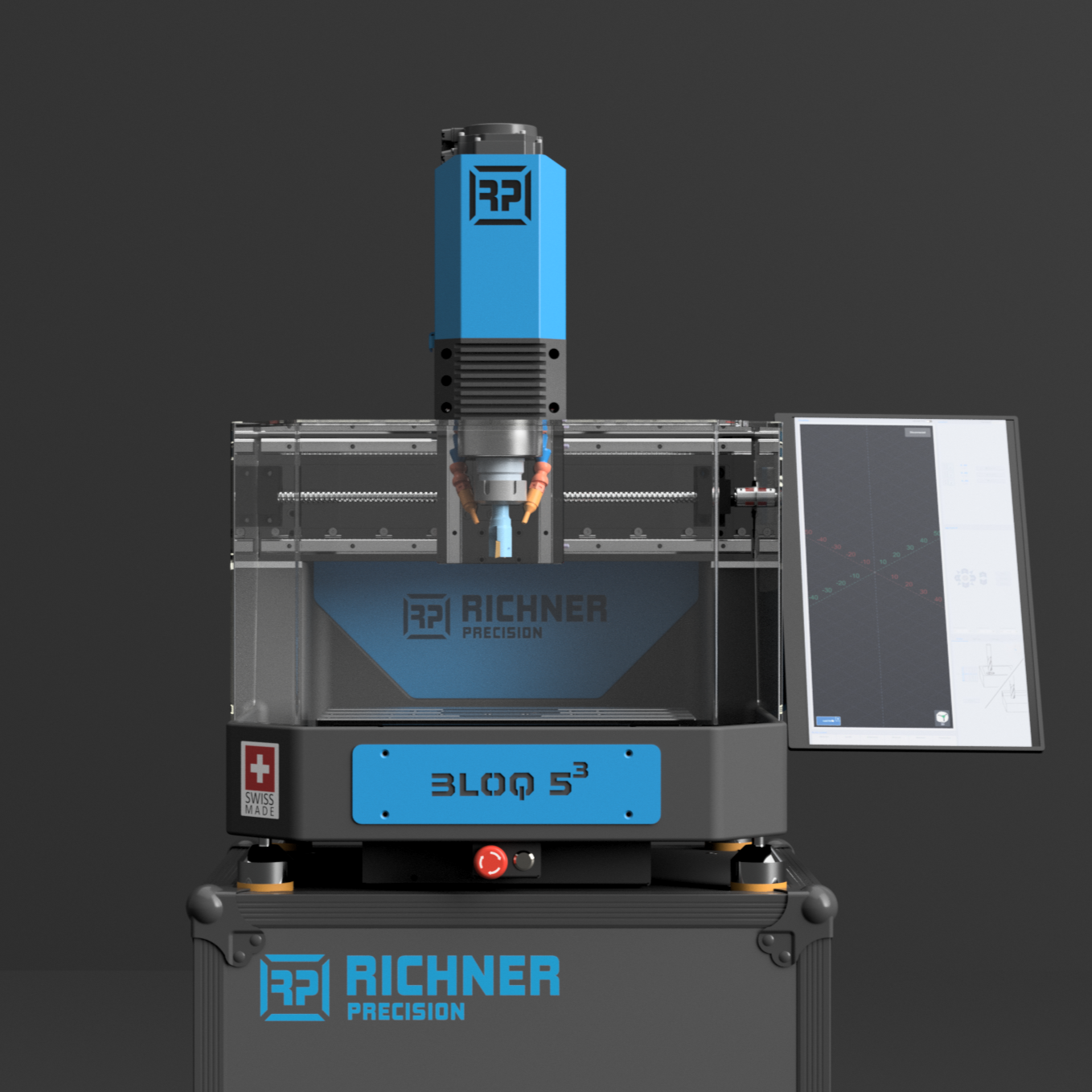

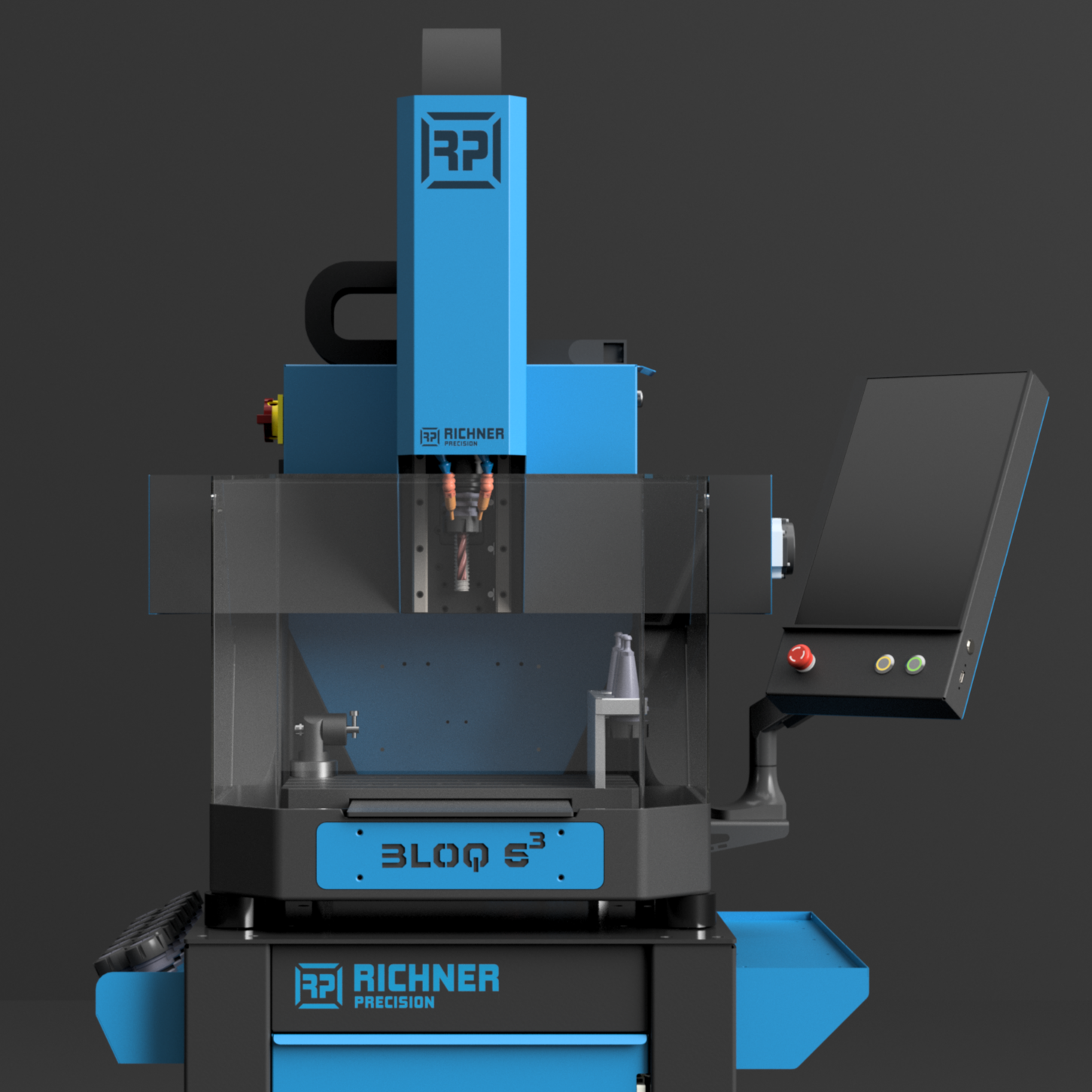

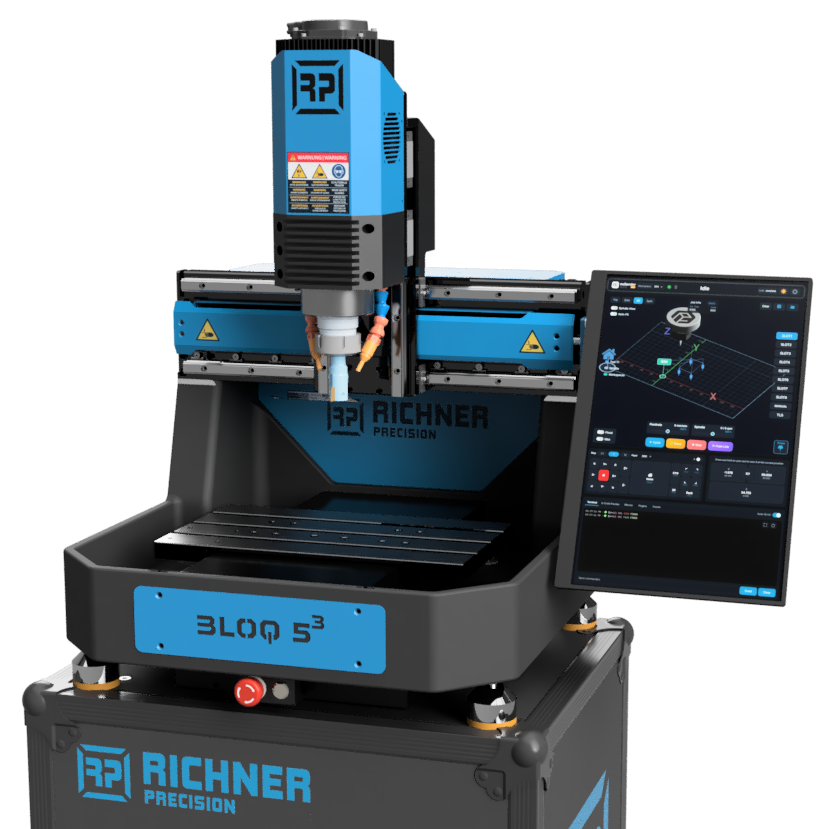

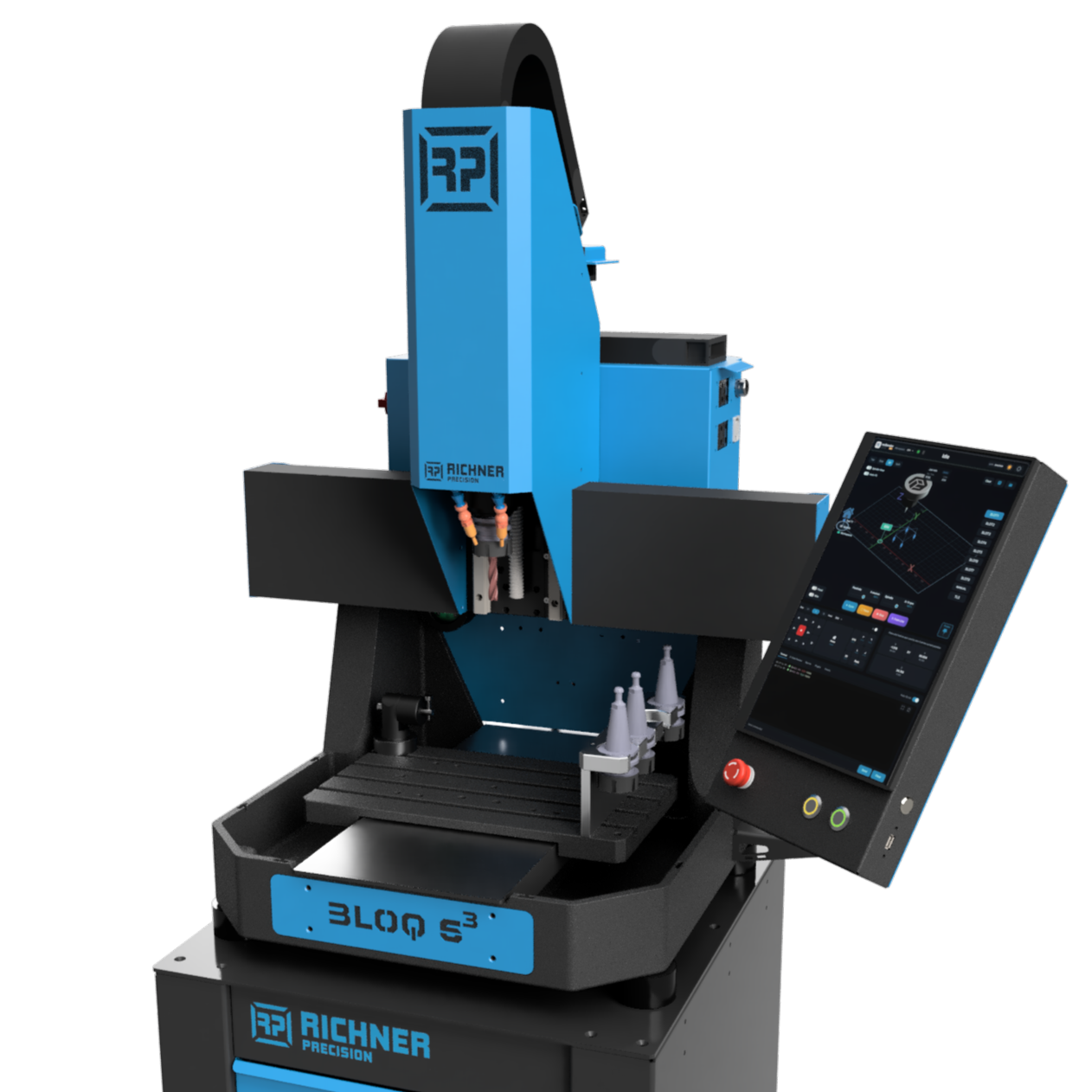

BLOQ 5³ CNC-Mill
Base-Machine starts at CHF 9500.-, EUR 10'294 € excl. VAT
- Travels: (X*Y*Z) 350x200x150mm
- Spindle Power: 2hp (1.5kW)
- Max. Feed Rate: 8m/min
- Table Size: 350x200mm
- System Weight: ≈170Kg with Case
Availability: in stock
BLOQ 6³ ATC CNC-Mill
Base-Machine starts at CHF 16'000.-, EUR 17'337€ excl. VAT.
- Travels: (X*Y*Z) 450x280x270mm
- Spindle Power: 6hp (4.5kW)
- Max. Feed Rate: 20m/min
- Table Size: 440x260mm
- System Weight: ≈400Kg with base unit
Availability: not available

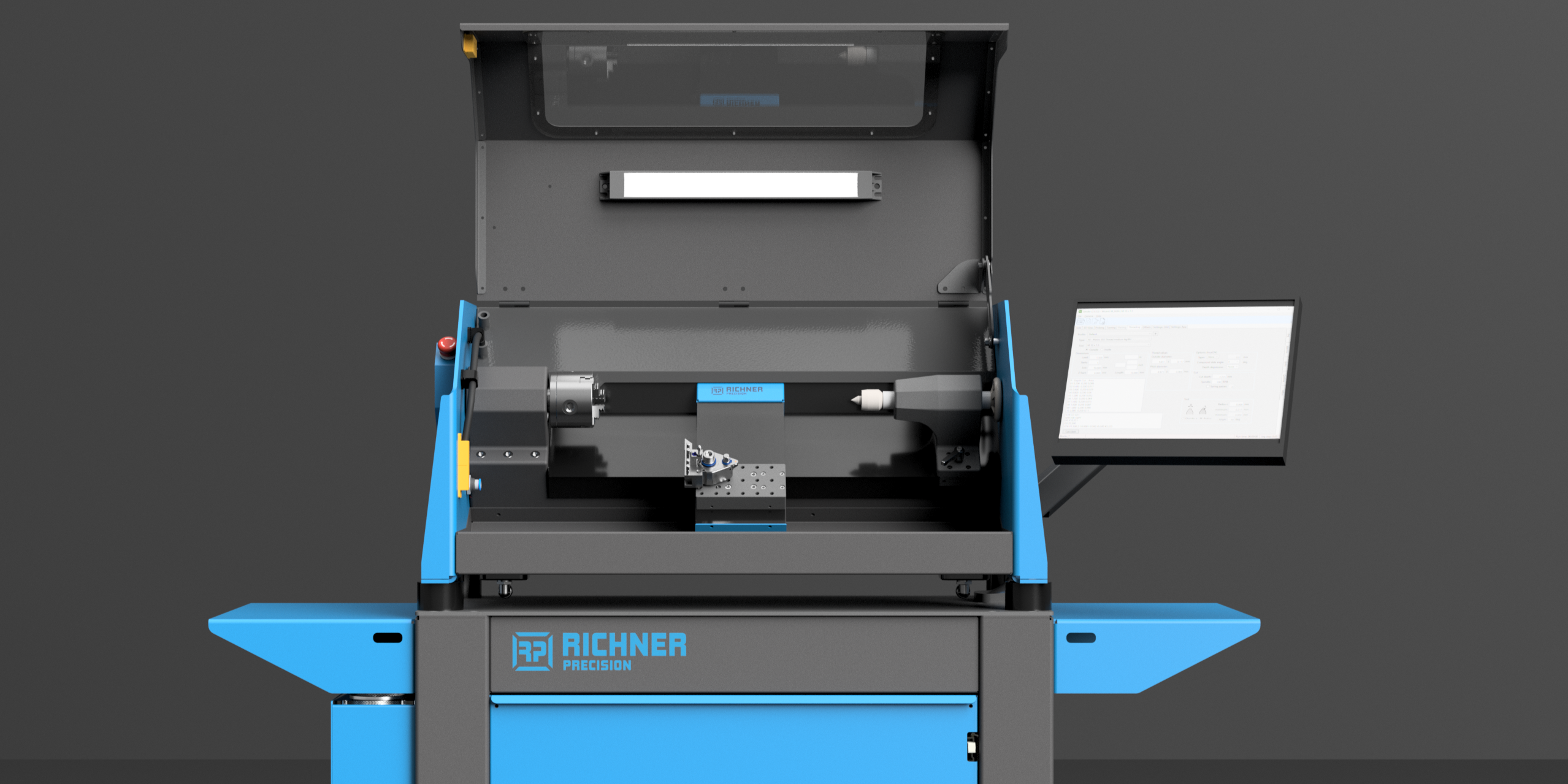

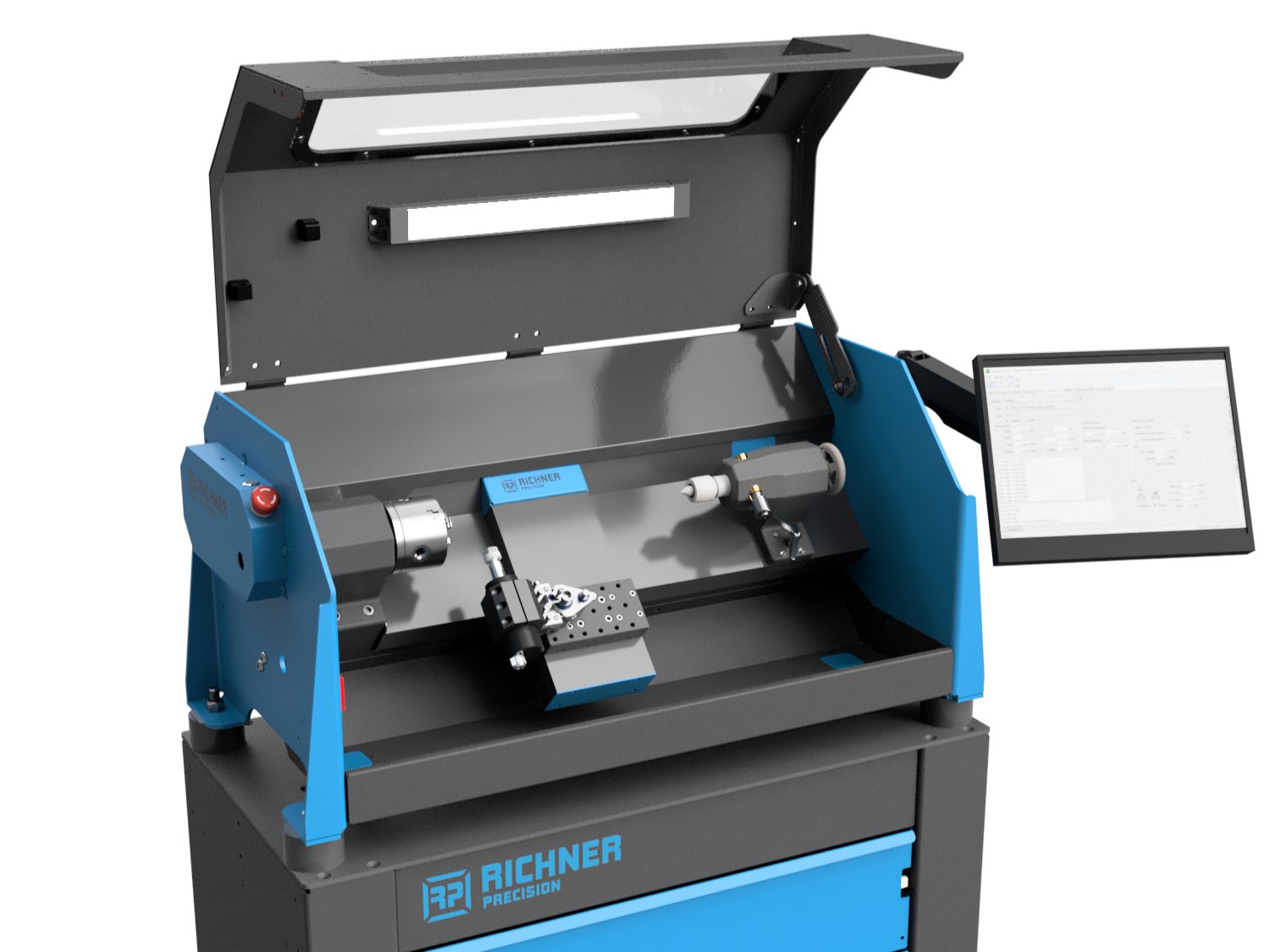

TORQ 8 CNC-Lathe
Base-Machine starts at CHF 7000.-, EUR 7585€ excl. VAT.
- Travels: 120x300mm
- Spindle Power: 1.34hp (1kW)
- Spindle max. Speed: 0-6000RPM
- Max. Workpiece diameter: 145mm
Availability: mid 2026

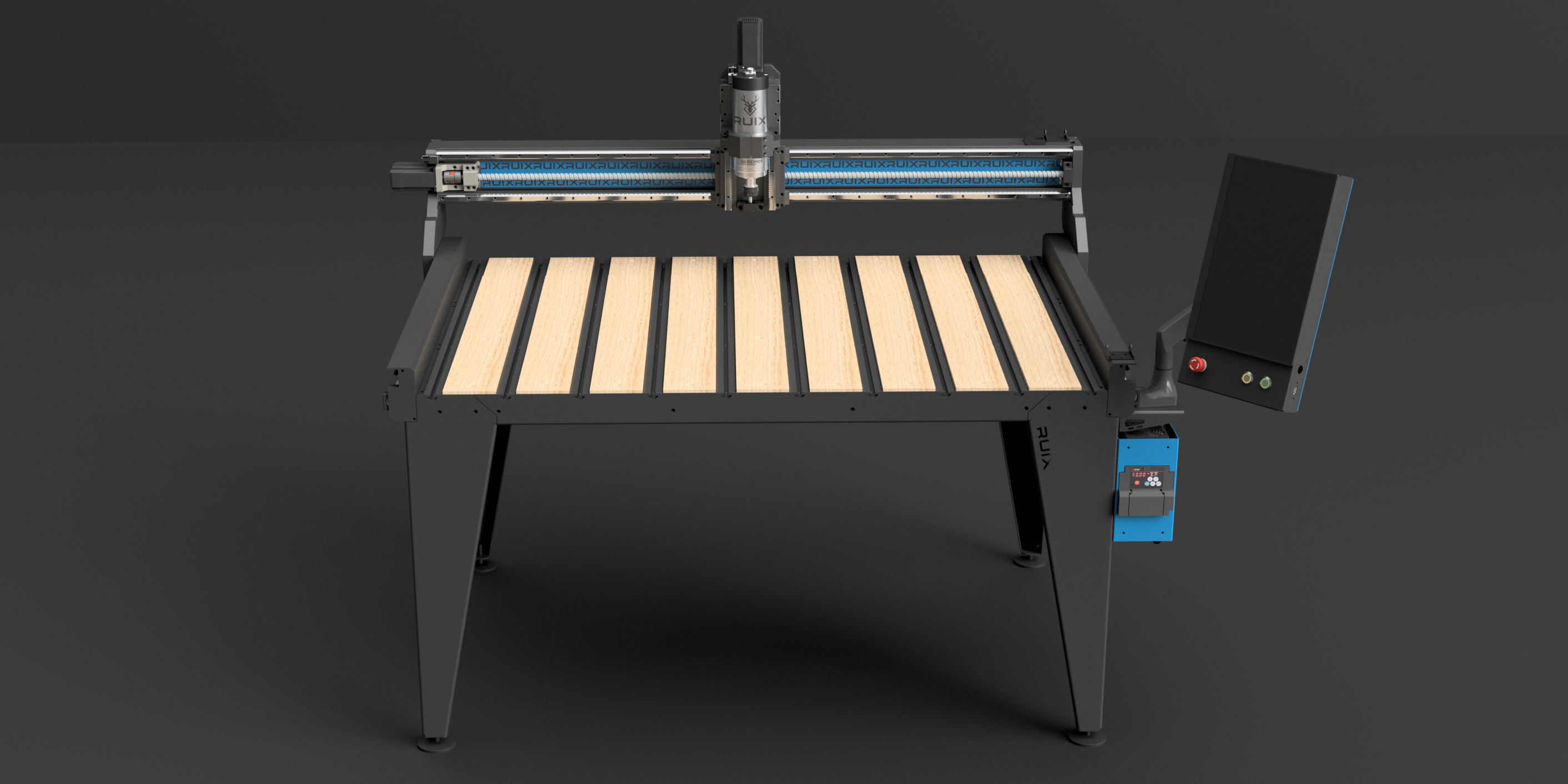

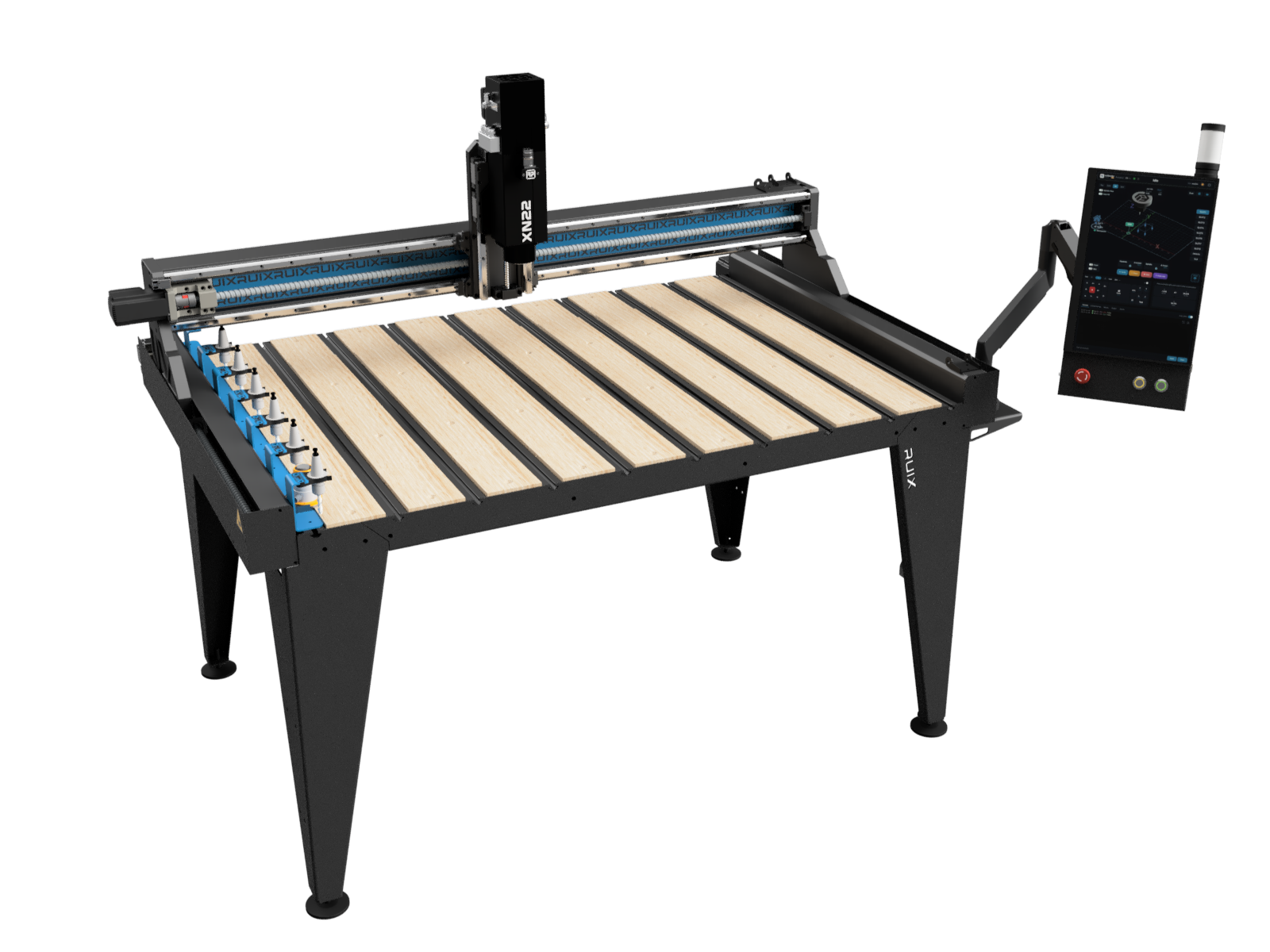

RUIX CNC-Router
Base-Machine starts at CHF 5200.-, EUR 5570€ excl. VAT.
- Travels: (X*Y*Z) 1260x780x170mm
- Spindle Power: 3hp (2.2kW)
- Spindle-Speed: 0-24'000 Rpm
- Max. Feed Rate: 15m/min
Availability: in stock
BLOQ 4³ Micron Watchmaker CNC
Base machine from CHF 19,900 / EUR 21,600 (excl. VAT)
- Travel (X × Y × Z): 250 × 162 × 150 mm
- Spindle power: 350 W
- Max. feed rate: 4 m/min
- Table size: 250 × 180 mm
- System weight: approx. 130 kg (with enclosure)
Availability: mid 2026

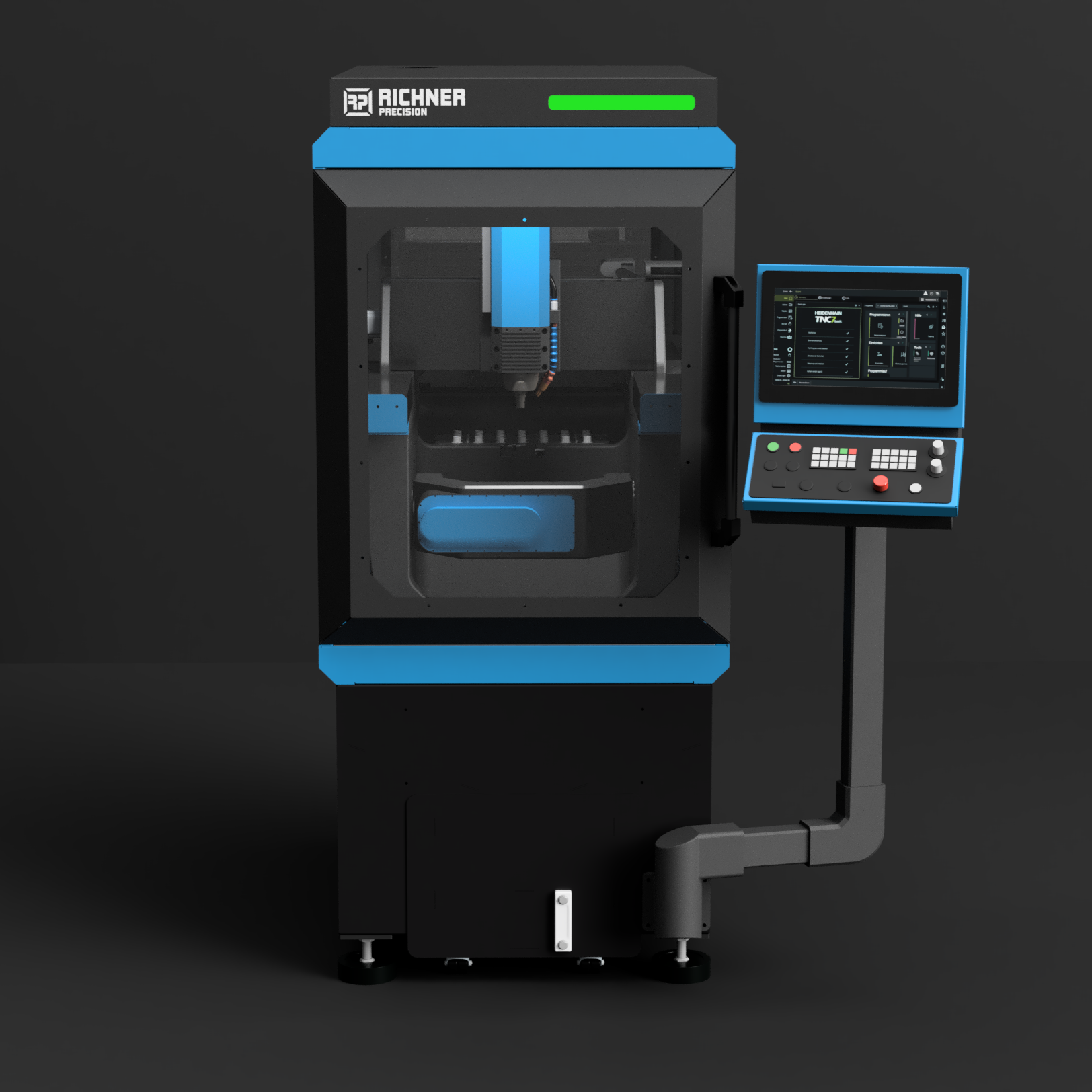

XM5 Neo 5-Axis CNC Milling Machine
Base machine from CHF 70,000 / EUR 75,649 (excl. VAT)
- Travel (X × Y × Z): 340 × 600 × 210 mm
- Spindle power: 5.5 hp (4 kW)
- Max. feed rate: 20 m/min
- Table size: 120 mm diameter
- System weight: approx. 700 kg
Availability: late 2026
XM9 Onyx VMC CNC Milling Machine
Base machine from CHF 42,000 / EUR 45,399 (excl. VAT)
- Travel (X × Y × Z): 460 × 300 × 400 mm
- Spindle power: 3.4 hp (2.5 kW)
- Max. feed rate: 30 m/min
- Table size: 790 × 284 mm
- System weight: approx. 1,000 kg (with base)
Availability: not available

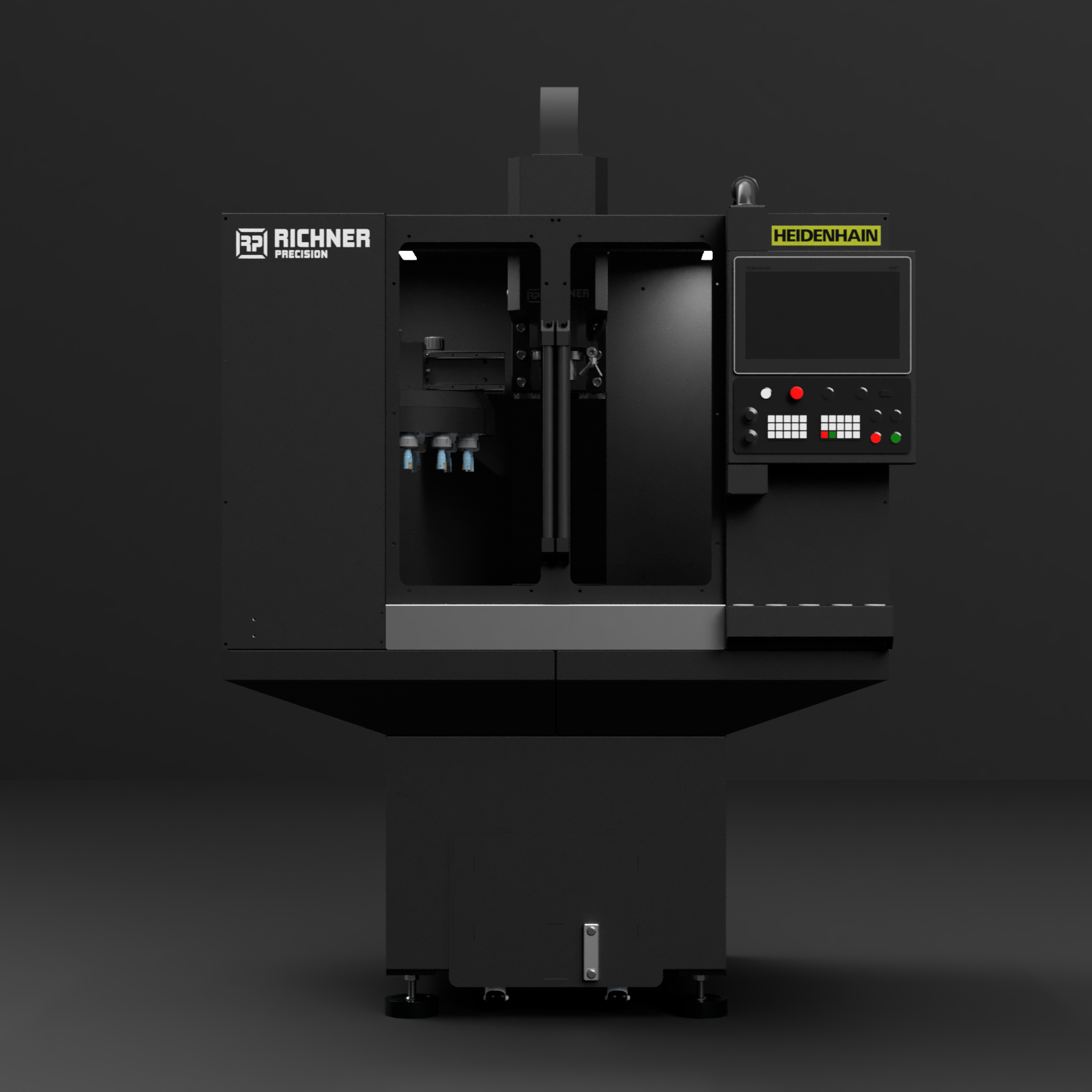

XM12 VMC | Swiss Built. Starting at CHF 52K.
Swiss built VMC performance without the six figure price tag. The XM12 brings professional machining capability into a price class rarely seen in Swiss machine tool manufacturing. Engineered for precision and flexibility across a wide range of applications, from prototyping and watchmaking to precision engineering, toolmaking and small batch production. Available from early 2027.
CONTROL & PRECISION
- Control: HEIDENHAIN TNC7 basic
- Position Feedback: HEIDENHAIN linear scales on all axes
- Machine Structure: Rigid mineral cast base
- Industrial Components: HEIDENHAIN, Siemens, Festo, Phoenix Contact and more
MACHINING & PERFORMANCE
- Travel: 400 × 330 × 400 mm
- Spindle: 5 kW, 12,000 rpm, BBT30
- High Speed Options: Motor spindles up to 30,000 rpm
- Tool Changer: 24 tool ATC
- Rapid Traverse: Up to 30 m/min
- Worktable: 780 × 320 mm
INSTALLATION & FLEXIBILITY
- Machine Height: Max. 2,300 mm
- Easy Access: Fits through 1 m doors with enclosure removed
- Machine Weight: Approx. 2,000 kg
- Automation: Solutions planned
- Options: Extensive configuration available

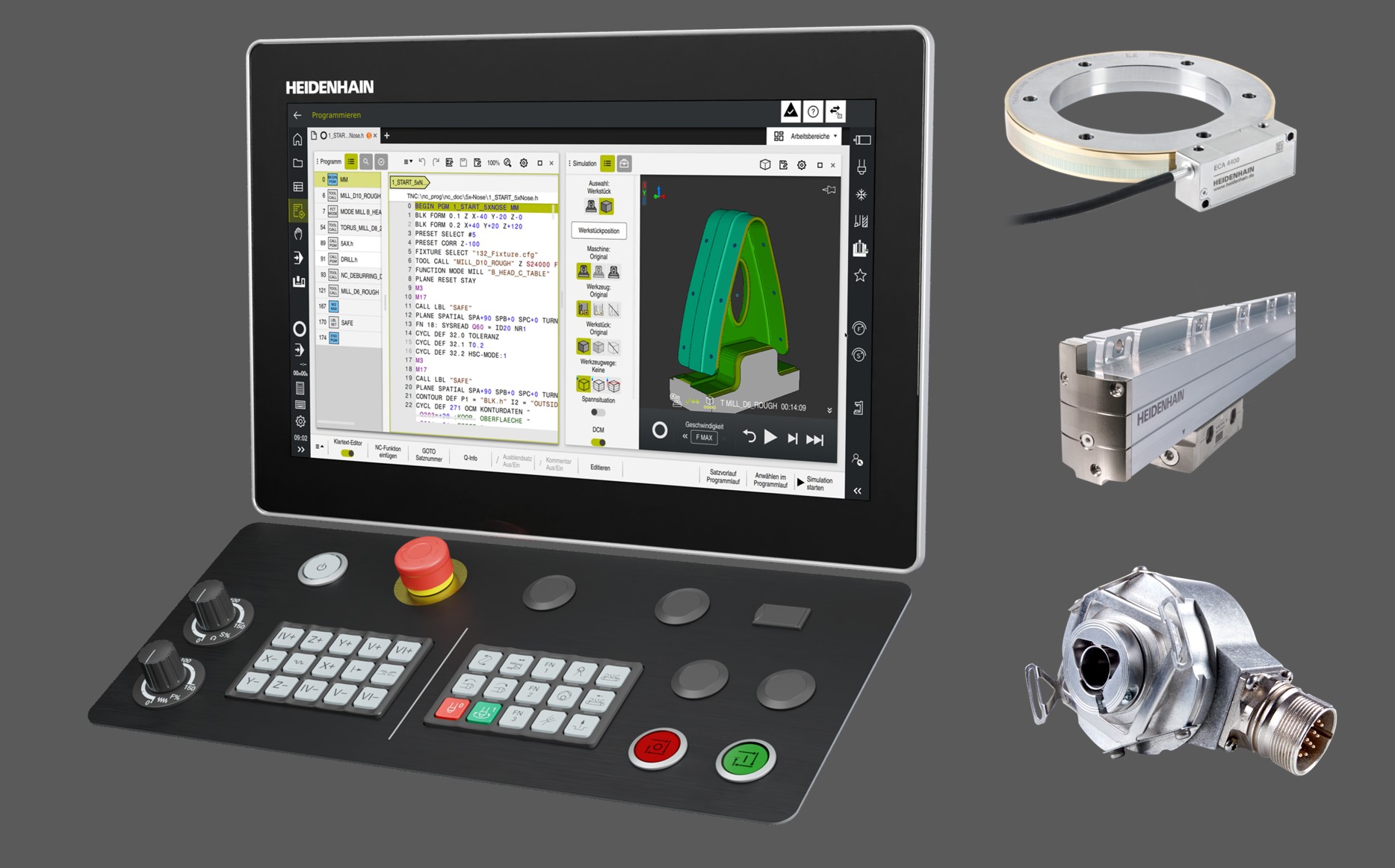

CNC redefined – coming soon with Heidenhain TNC7
Richner Precision is entering a new chapter with Heidenhain and will equip selected machines with the latest TNC7 Basic controls, along with optional high-precision rotary and linear encoders.
With the upcoming versions of BLOQ5 Pro, XM5 Neo and XM9 Onyx, we combine cutting-edge control technology with consistently engineered Swiss machine design.
While comparable solutions today often start at around CHF 100,000, our systems will be available starting from CHF 32,000.
